Email Shield (AVG Business Antivirus)

Email Shield checks incoming and outgoing email messages in real time for viruses and links to malicious websites. This only applies to messages handled by mail management software installed on your computer, such as Microsoft Outlook. If accessing a web-based email account via an internet browser, the device is protected by other Antivirus shields.

We do not recommend installing this component on a server OS that is also running Microsoft Exchange. The Exchange and Anti-Spam components handle the Exchange-level filtering and will conflict with Email Shield.

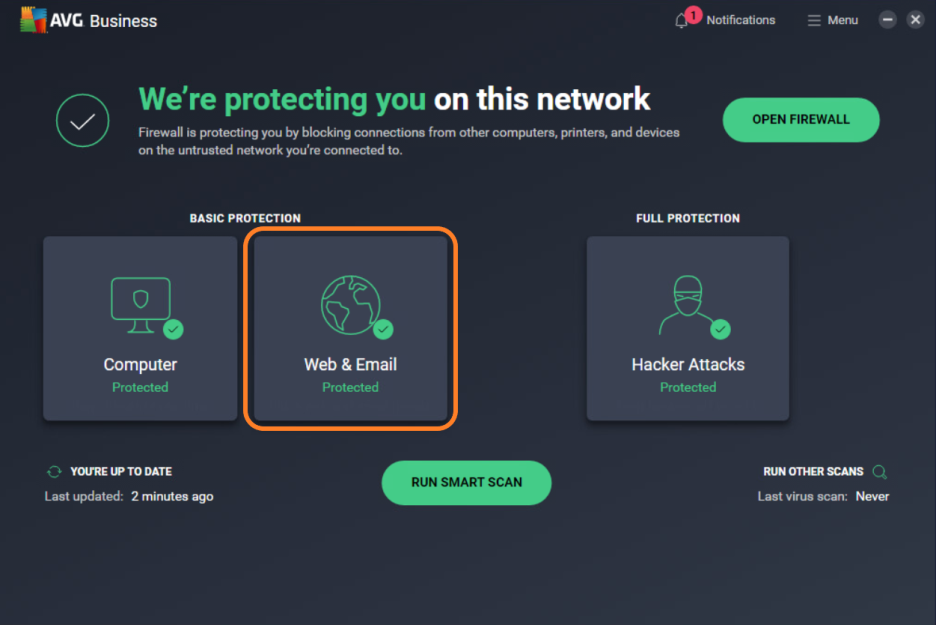

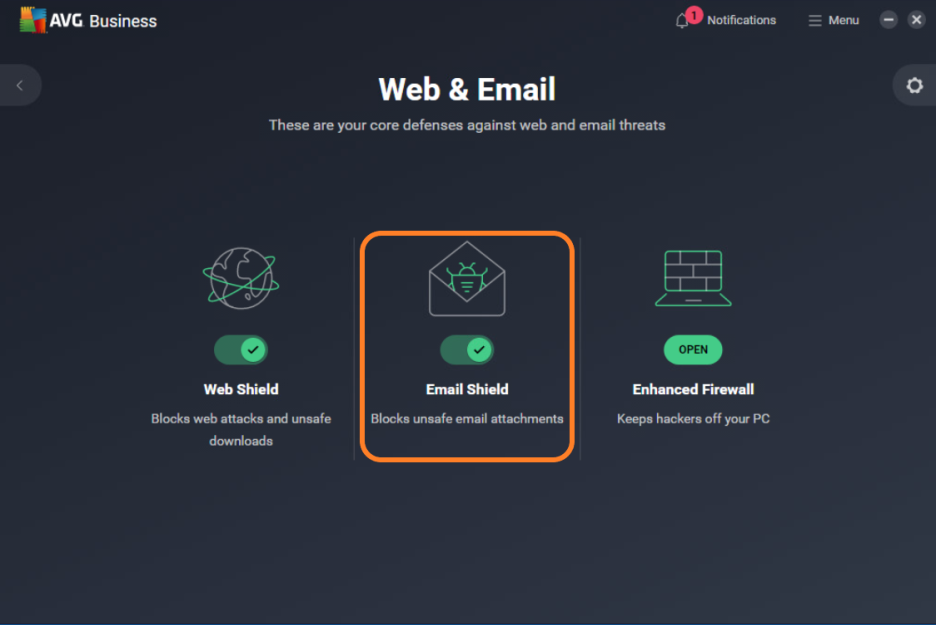

Email Shield is part of the Core Shields of the AVG Business client, and it can be seen under the Web & Email section.

From the Web & Email section, you can enable/disable this component using the dedicated toggle.

Note that it is not possible to individually enable/disable Email Shield in managed devices - only all core shields can be disabled/enabled at once from the Advanced Settings. Unmanaged devices have free control over disabling/enabling these shields.

Configuring Email Shield Settings

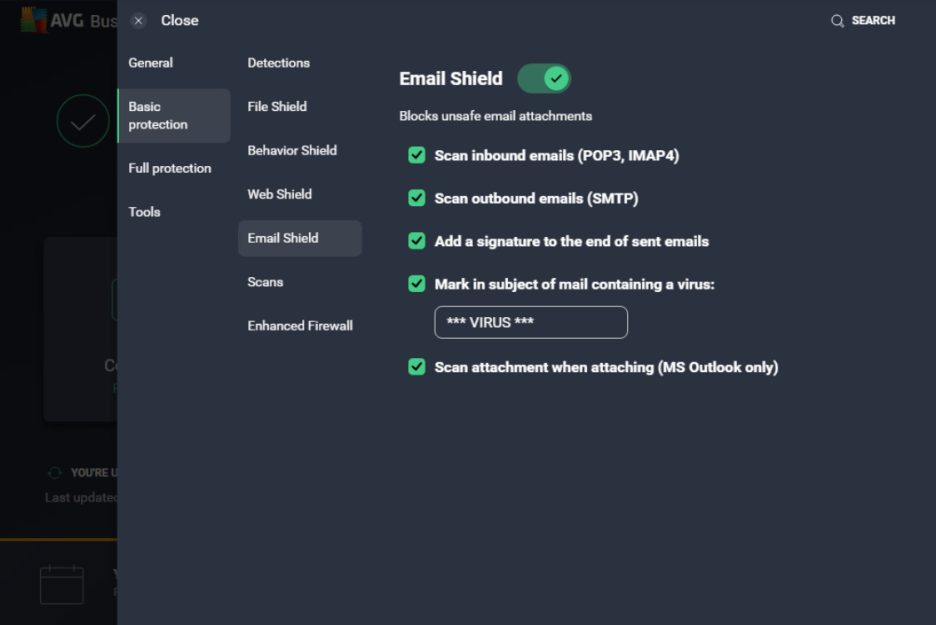

Advanced Email Shield settings can be accessed by either clicking the gear icon on the Web & Email screen or navigating to Menu > Settings > Basic Protection > Email Shield.

The following options are available here:

• Email Shield toggle: Turns the shield on/off
• Scan inbound emails (POP3, IMAP4): Scans all incoming emails sent using an SSL/TLS encrypted connection
• Scan outbound emails (SMTP): Scans all outbound emails sent using an SSL/TLS encrypted connection
• Add a signature to the end of sent emails: Includes a message for the recipient in an outgoing email confirming the email has been scanned for malware and is clean
• Mark in subject of mail containing a virus: Allows specifying a word or phrase that will automatically be added to the subject of any email containing a virus
• Scan attachment when attaching (MS Outlook only): Scans outgoing email attachments sent with Microsoft Outlook

Additional Geek Area Settings

Within the Geek Area, there are several further settings for Email Shield. To access these:

1. Go to Menu, then select Settings

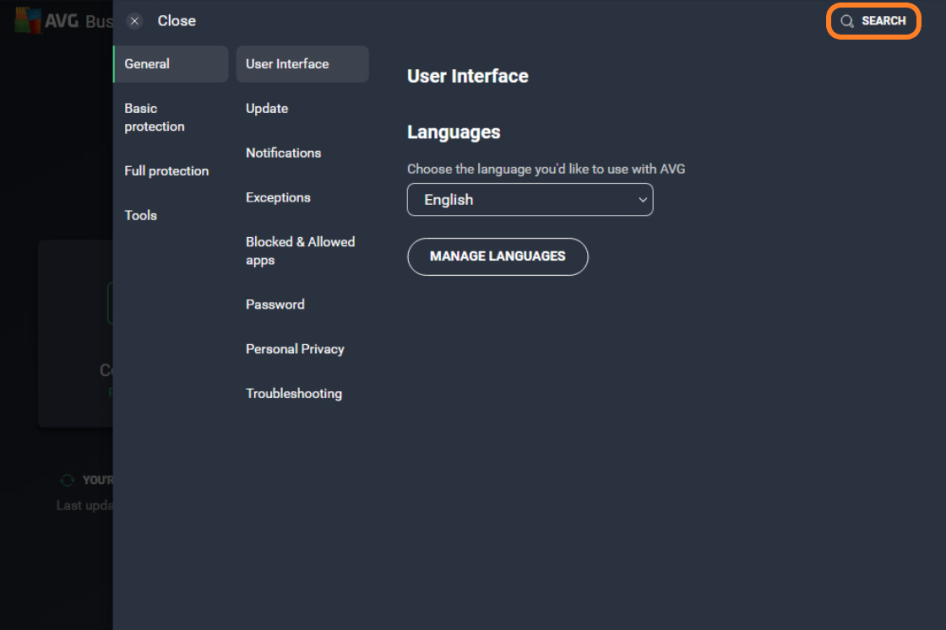

2. Click Search in the top right corner

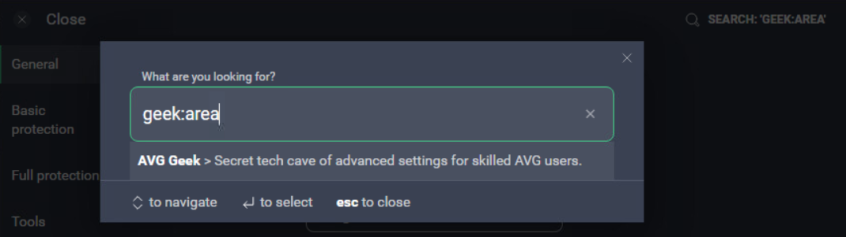

3. Type geek:area in the search field, then hit Enter

4. Scroll down to the Email Shield section

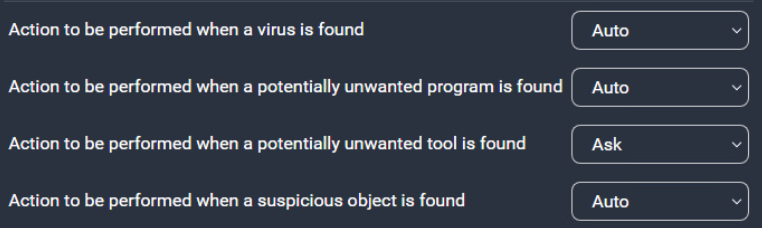

There are four detection types you can configure here:

• Action to be performed when a virus is found
• Action to be performed when a potentially unwanted program is found
• Action to be performed when a potentially unwanted tool is found
• Action to be performed when a suspicious object is found

For each type, it is possible to only configure one single action. The available actions can be selected from each drop-down menu:

• Auto: Runs a sequence of actions (repair file; if not possible, then move to Quarantine; if not possible, then delete)
• Ask: AVG asks what you want to do with a detected threat before any action is taken
• Nothing: No action is taken; the threat is listed in your scan results and you can decide what to do later
• Move to Quarantine: Sends the threat to Quarantine, where it cannot harm your system
• Repair: Removes only malicious code attached to an otherwise safe file — this is not possible for files that are entirely malware
• Delete: Permanently removes the file from your computer

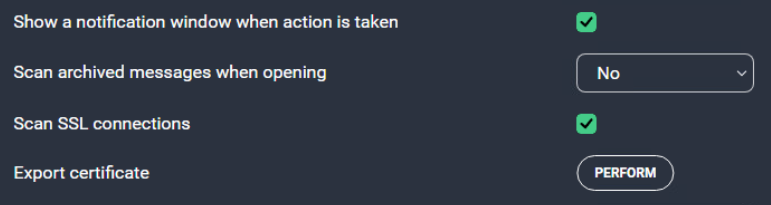

Apart from these options, you can define whether Email Shield will:

• Show a notification window when action is taken: Choose whether a notification is displayed when Email Shield takes an action
• Scan archived messages when opening: Select from the available options (No, All Messages, Unread Messages Only)
• Scan SSL connections: Choose whether Email Shield scans SSL connections
• Export certificate: Click the Perform button to save the Email Shield certificate (File Explorer will open to choose a save location)

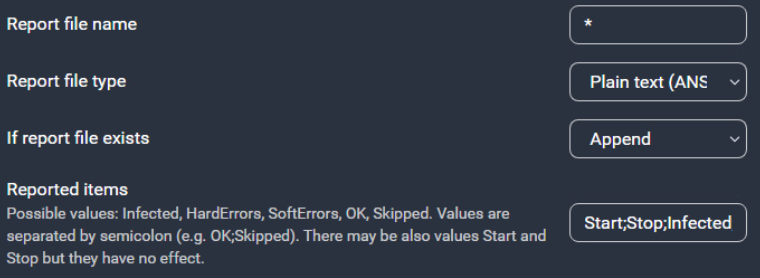

It is also possible to configure the report file here in order to enhance the reporting of the shield:

• Report file name: Enter a name for the report file (default * will use the default file name)
  • The Generate report file option needs to be enabled for the report file to be created.
• Report file type: Select the format of the report file:
  • Plain text (ANSI)
  • Plain text (Unicode)
  • XML
• If report file exists: Select Append if you want new results to be added to the end of the previous report, or Overwrite if you want new results to replace the previous report
  • Using the Append option will gradually increase the size of the report file on the disk. Including informative events such as OK will also greatly increase the size on the disk as every clean file will be reported.
• Reported items: Define which events appear in report files. Type any of the following events into the text box provided, ensuring entries are separated by semicolons:
  • Infected — Files and areas of the scanned environment that the virus scan identifies as containing malware
  • HardErrors — Unexpected errors that require further investigation
  • SoftErrors — Minor errors, such as a file being unable to be scanned because it was in use
  • OK — Files and areas that the virus scan identified as being clean
  • Skipped — Files and areas that the virus scan did not check because of the scan settings

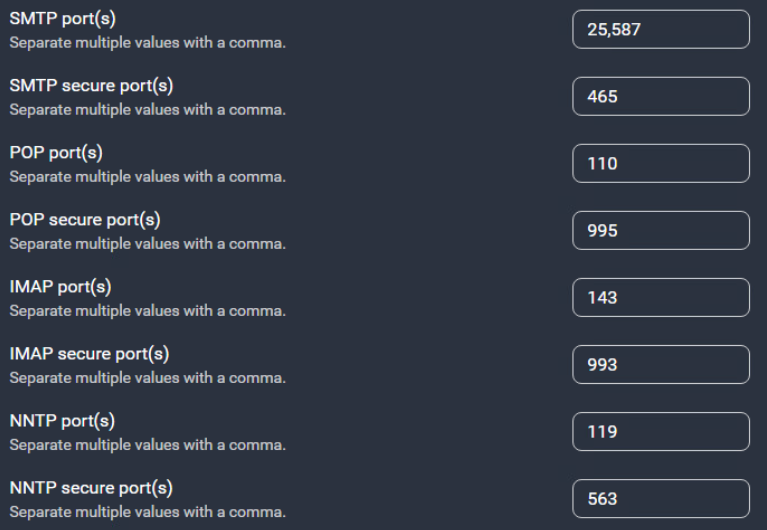

Finally, the default ports are listed for each protocol (unsecured and secured). It is possible to change/add ports (comma separated) if there are different ports used by the mail client.

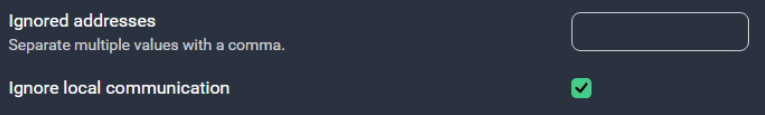

Addresses where the communication will be ignored can be defined here as well (so Email Shield will not scan those connections). The Ignore local communication option is used to ignore the communication on local (private) networks.

Adding Mail Shield Exceptions

Apart from the above-mentioned feature in the Geek Area where you can exclude addresses from Mail Shield scanning, there are no other types of exceptions for Mail Shield (e.g. in the Exceptions section of the client).
